Integrated Pull-Down Kitchen Faucet with Soap Dispenser

  • Model: P188104LF-SD
  • List price as shown: $205.30
  • Finish: Chrome
P188104LF-SD is rated 2.2 out of 5 by 19.
  • y_2018, m_5, d_24, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_19
  • loc_en_US, sid_P188104LF-SD, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_peerless
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 55ms
Faucet Finish/Color Options

Product Features & Benefits

  • Single lever control for ease of operation with one hand

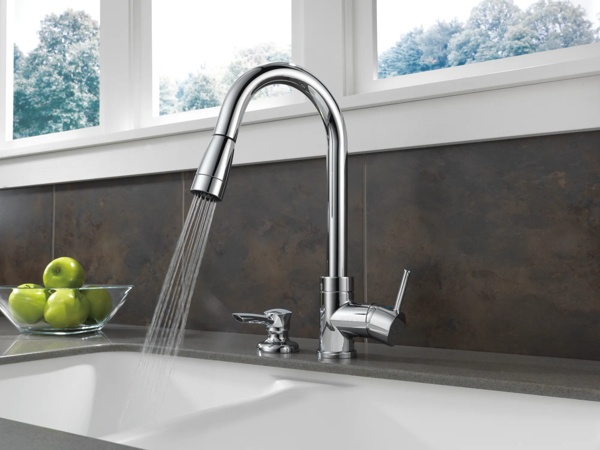

  • Pull-down wand operates in an aerated or spray mode via swivel spray face.
  • Matching soap dispenser for added convenience
  • Escutcheon plate included for four hole mounting
  • Low Lead Certified
  • Soap Dispenser
  • ADA Compliant

Product Details

  • Handle(s): Single Handle Lever
  • With Soap/Lotion Dispenser: Yes
  • Flow Rate: 2.20 gpm @ 60 psi, 8.3 L/min @ 414 kPa
  • Pull-out/Pull-down: Yes
  • Valve Type: Ceramic valve
  • Installation: 1,2,3,or4-hole8inchinstallation
  • Spout Length: 8
  • Spout Total Height: 15-1/2
  • Spout Height Deck to Aerator: 8

Product Support, Repair Parts & Technical Specifications

Maintenance & Installation Sheet


Technical Specifications


Parts & Accessories Diagram


Holes for Installation


Rated 3 out of 5 by from Great looking faucet but has some issues When I bought my house I remodeled the entire kitchen and chose to go with this kitchen faucet. I love the look of it with its clean styling and lack of buttons make cleaning and breeze. The issues with it is the sprayer had a positive stop for the two different functions for only a couple months. The click to it positive position turned real soft, but it wasn't too bad. Now one year later you can't even feel where the positive stop would be. It's not an issue with any kind of hard water build up as I have a water softener and there is no signs of hard water build up. I dismantled the sprayer to find very tiny plastic pieces used for the positive stop, no surprise they were wore out and one of the three was broke off. Another small issue which is no-fault of the faucet or its manufacture, it is the other people who use it. In my case most people are use to the faucet having a slow normal stream and they do not expect it to be set in spray mode. So many times my roommates stick something under it and turn it on causing the sprayer to splash all over the place making a huge watery mess. With me this isn't an issue because I simply check to see if it's in spray mode or stream mode. My other roommate still has not learned to check before placing something underneath it and just turn it on. It would be much better if it automatically switch back to a stream when shutting it off. So just be aware of that if you have water spot O.C.D like I do.
Date published: 2018-04-27
Rated 1 out of 5 by from Peerless? I also purchased this faucet and it lasted for a little bit however I still had the sprayer break just like everyone else had. Seems like it not very well put together
Date published: 2018-04-19
Rated 2 out of 5 by from Poor design, but love this faucet I had this faucet until I, too, had the spray head of the faucet break. The first time it broke, my husband was able to glue it, then I just didn't use the spray feature because I like this faucet and didn't want it to break again. Well, last week it broke again. This time the glue wouldn't hold it. I love the look and it's heavier than most out there to replace it with. It is a design flaw, can they make it with a button sprayer instead? I would like to replace the spray head if possible.
Date published: 2018-04-09
Rated 2 out of 5 by from Not so much I bought 18 of these to install in kitchens I was renovating in a small apt property. So far I've had two of the pull down faucet/spray heads break during normal use by tenants. In each case the plastic connector failed. It wasn't until researching my photo files that I found a picture of the boxes they came in, AFTER I replaced them with other brands. I couldn't locate my Menard's receipts. I don't know if repair parts are available or not. I kept the most recent one that failed hoping I could find a solution.
Date published: 2018-02-04
Rated 2 out of 5 by from Sprayer assembly broke under normal use Wish I would’ve seen the reviews before purchase. I too have had the sprayer assembly break off after a short time of use. The plastic design just doesn't hold up at all, very disappointed.
Date published: 2018-01-07
Rated 2 out of 5 by from Cheap design Sprayer head has plastic inside. Broke off in the first few months of use.
Date published: 2017-10-28
Rated 3 out of 5 by from Poor design the sprayer broke off within a year Only had this faucet about a year and the sprayer has broken, cannot find a new sprayer, and am not happy about having to replace a faucet. Beautiful faucet until it broke off. Can I get/buy a replacement sprayer to fix this faucet?? SOS HELP!!
Date published: 2017-06-27
Rated 1 out of 5 by from Poor design, critical failure mode built into the nozzle head! Like the other reviewers, the nozzle fell off today due to the plastic insert inside the nozzle head itself! Poor design as this is the weak point which must be twisted in order to switch from spray to the normal aerator setting and back. In service for about a year and a half in a residential setting. By replacing the nozzle head assembly (plastic), this will only happen again in the future. I have included some pictures!
Date published: 2017-06-14
  • y_2018, m_5, d_24, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_19
  • loc_en_US, sid_P188104LF-SD, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_peerless
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 12ms

Is there an adapter available to accommodate a Portable Dishwasher?

I have a portable dishwasher that hooks up to my old Moen faucet. I would like to buy the above faucet for my new counter and sink. By removing the spray head it could accommodate my dishwasher if I had a part that would fit in it's place or an adapter for the part I currently use. From what I saw in the store, it would need pipe threads to fit the new faucet and machine threads to attach to the old fitting.
Asked by: Dal
Having done so myself, I can say that there are not backpressure issues as suggested by the manufacturer. It is a 1/2" pipe thread. To convert that to a facet thread, you will have to go from the 1/2" to 3/4"GHT (Garden Hose). From there (1/2" Male to 3/4" GHT Female) I was able to go 3/4" GHT Male to 55/64" Female Inside 15/16" Male Outside, then using a 55/64" Male-Male Coupler to my 55/64" Female Inside 15/16" Male Outside Quick Attach Snap On Aerator that attaches to my portable dishwasher. You will want to screw it all together using wrenches and pliers to avoid drips. I have found that the Quick Attach adapter for my portable can come off the end and be put back on by hand easily so I can swap in my water filter whenever I want and that finger tight is enough to not get drips between that and the coupler.
Answered by: Carson
Date published: 2017-10-28

can i turn it around so the handle is on the left?

Asked by: JK
Hi JK, Thank you for your question. The spout on the model P188104LF-SD rotates a full 360 degrees. The faucet can be installed with the handle on the left. Thanks, Dave
Answered by: Deltafaucet2
Date published: 2016-02-04

Is it possible to change the stream/spray option so the default is spray?

Loving my new Peerless faucet so far, particularly the ability to switch - with the press of a button - the faucet head to a shower-type spray rather than the default single stream. Thing is, the spray is more convenient for almost all uses. Is it possible to change the default to spray?
Asked by: Gary
Hi Gary, Thank you for your question. The wand on the model P188104LF-SD does not have a default stream/spray setting. The faucet will remain in whatever spray setting is chosen when the faucet is turned off and back on again.If you leave the wand in the spray setting it will remain there until changed. Thanks, Dave
Answered by: Deltafaucet2
Date published: 2015-09-21

How do you tighten the swivel neck?

The neck that the pull down head seats in rocks back and forth in the base. Is there any way to tighten it.
Asked by: pitties4
Hi Pitties4, Thank you for your question. There is no adjustment to make the spout tighter but we recommend that you verify that the spout bonnet is tightened down completely. Thanks, Dave
Answered by: Deltafaucet2
Date published: 2015-05-11

Can I get another matching soap dispenser with this faucet? Can I buy it separately?

Asked by: Susan
Hi Susan, Thank you for your question. The soap dispenser to the model P188104LF-SSSD is available to order separately as RP49302SS. This item can be ordered online or from your local retailer or wholesaler that sells Peerless/Delta products. http://www.deltafaucet.com/repairparts/details/rp49302ss.html?showPhotoGallery=false Thanks, Dave
Answered by: Deltafaucet2
Date published: 2015-04-13

Does this faucet have flexible supply lines or copper lines?

Asked by: deppzone
Hi Deppzone, Thank you for your question. The model P188104LF-SSSD has copper supply lines that end with a 1/2" male pipe fitting. Thanks, Dave
Answered by: Deltafaucet2
Date published: 2015-02-20

I need to get a replacement part, the black threaded nylon nozzle in the head

Have looked threw this site trying to find the part described above , and just keep getting directed to the same unhelpful areas , this site is labeled parts and repair but thats not here , I need to get this part that broke, going to help or redirect me again to something that does not apply, the threaded black nylon nozzle assy it broke in two pieces
Asked by: cabbage
Hi Cabbage, Thank you for your question. The wand assembly for the model P188104LF-SSSD does not break down into smaller components that are available as separate items. If the black threaded portion of the wand is damaged the entire RP71265SS will need to be replaced. If you are the original purchaser of the faucet and need warranty parts assistance please call our toll free Helpline at 1-800-643-8667. Thanks, Dave
Answered by: Deltafaucet2
Date published: 2018-01-05

Is there any plastic in the faucet assy, other than the flexible connections? Is there plastic in the soap pumper?

Asked by: Sopovada
Hi Sopovada, Thank you for your question. The wand assembly and the soap dispenser are the non-metallic components on the model P188104LF-SSSD faucet. Thanks, Dave
Answered by: Deltafaucet2
Date published: 2014-05-09
