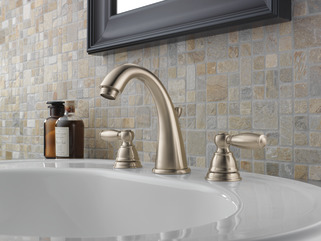

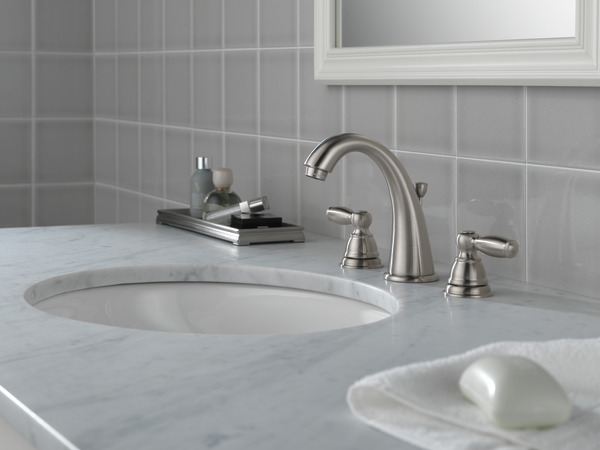

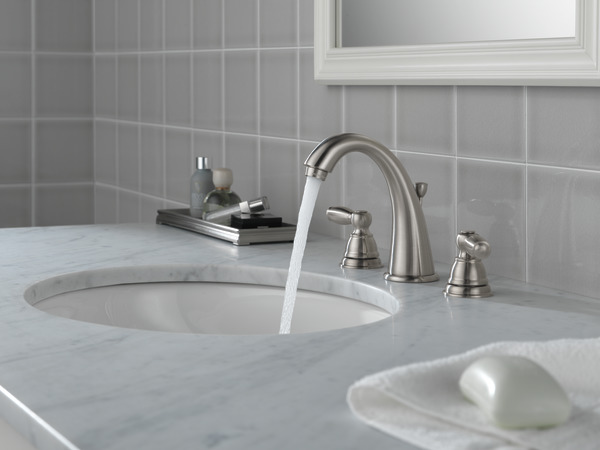

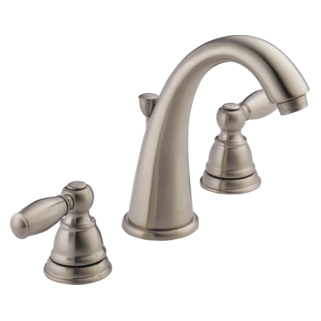

CLAYMORE™
Two Handle Bathroom Faucet
Model:P299196LF-BN
Product Features & Benefits
- WaterSense certification promotes water conservation
- Includes matching finish drain assembly
- Meets standards set by Americans with Disabilities Act (ADA)
- Fits 3-hole 6-16 in. installations
- Water Efficient Product meeting CALGreen standards
- Low Lead Certified
- Brilliance Finish
- WaterSense Labeled
- ADA Compliant
Product Details
- Handle(s): Two Handle Lever
- Flow Rate: 1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
- Valve Type: Washerless stem cartridge

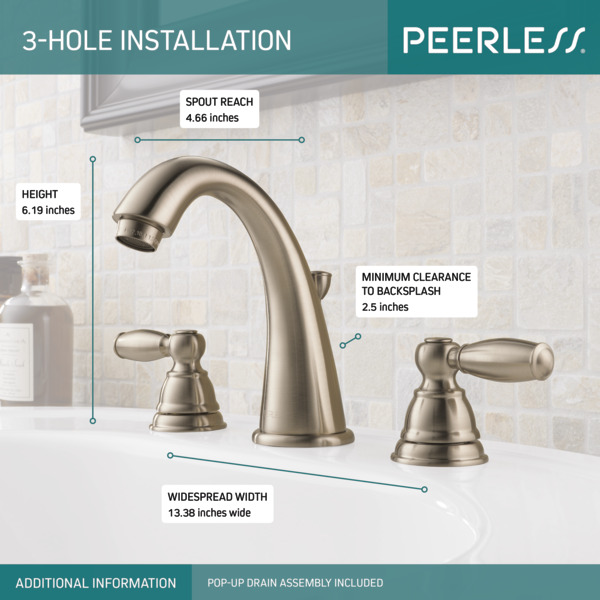

- Installation: 3-hole 6-16" installation
- Spout Length: 4-21/32
- Spout Total Height: 6-3/16
- Spout Height Deck to Aerator: 4-9/32
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram
Holes for Installation
3-hole 6-16" installation
Rated 2 out of
5
by
AngryPlumber from
Looks good, cheap parts
I bought two for a double sink. The first install was okay, the second horrible. After doing the plumbing from the wall and getting things lines up I started the second install. The sink drain nut broke while hand tightening it. That equals leak. I searched all over and nothing fit (all slightly smaller). I then contacted peerless (delta) and they were kind enough to to send a replacement drain assembly. I was thinking I could just use the but and be on my way....no. had to cut out old drain and start from square one. Time is money, and this cost me too much time. Never again.
Date published: 2018-08-20
Rated 5 out of
5
by
Ping from
Good product and very affordable
We ordered this product for our bathroom remodel. Our plumber had no trouble to install them. He did not read the instructions at all and finished it in 10 minutes for installing one of them. They look great and matches my other moen products. Saved me more than $200 as I did not order the matching moen faucets. Works perfect.
Date published: 2016-01-20
How do I get the caps off the hot/cold bathroom faucet? (The handles are getting loose).
Thank you for your question, Carol! The cap on the top of the handle can be removed by hand or carefully using a small tool. This will allow you to access the Phillips screw to tighten the handle.
best regards, Jon
Date published: 2019-02-14
Same Question Cory had. Which part is bonnet nut to unscrew? I do not see any screw under the cap or side hole to use allen ranch to pull the top up. Mine is exactly same Model y the picture but about 10 yr old one installed when my house built.
Hi, Duke!
Thank you for your question. The bonnet nut is located under the handle assembly. The screw is located on the top of the handle, hidden under the 'H' and 'C' buttons. Here is a link to the parts diagram to show the parts for this faucet:
https://media.peerlessfaucet.com/PartsDiagram/PPD-L-P299196LF.pdf
Best Regards,
Rosanna
Date published: 2018-05-26
I have a two tap bathroom faucet that is dripping from the spout. I have identified the hot tap as the problem. I can remove the handle and nut, but cannot lift out the stem.
Hi, Cory!
Thank you for your question. The stem unit assembly can be removed by first remove the handle, and then unscrewing the bonnet nut counterclockwise to remove. Once these are removed, you can then pull the stem unit assembly straight up and out. The parts to replace is kit number RP42096.
http://www.peerlessfaucet.com/kitchen/product/RP42096
Best Regards,
Rosanna
Date published: 2018-05-24
What is the color of this faucet?
In the picture, the color seems to be more black than bronze. I am considering a purchase but the color is the determining factor.
Hi Mike, Thank you for your question. The model P299196LF-OB is our oil rubbed bronze finish. The finish is a very deep/dark bronze finish but not black. You may want to physically see the finish in person before making your final finish selection.
Thanks,
Dave
Date published: 2016-02-01
Can this pop up be used on a sink without overflow?
Hi JTC, Thank you for your question. You do not want to install a pop up with overflow holes on a sink without an overflow. Water will potentially leak from the openings in the drain assembly. You will need a drain assembly less overflow like our RP47648 grid strainer or 72172 push pop-up drain.
Thanks,
Dave
Date published: 2015-05-28
my faucet is dripping
cant tell if it is the hot or cold handle but the faucet is dripping. is there a part that can fix this. Can this be fixed by a washer or special part,
Hi Marlene, Thank you for your question. You will want to order the RP42096 stem unit assembly, seat, spring, and bonnet nut kit. This kit will give you the necessary parts to change out the hot and cold internal components to stop the drip on your model P299196LF faucet.
Thanks,
Dave
Date published: 2014-09-30
Pop Up Drain Leaks
In installed the pop-up assembly with silicone under the flange, but it seems that my sink drain has a deep slope and the sides of the flange do not lie flat against any part of the hole at the bottom of the sink. It leaks all around the sink drain. What can I do??
Hi Jeff, Thank you for your question. You will have to add enough silicone to fill in the gaps and give the drain flange a complete seal to your sink. Based on your description of the sink drain area you may need more silicone than usual for the installation.
Thanks,
Dave
Date published: 2014-05-29
What is the material of all parts in contact with water ?
Hi Tegor, Thank you for your question. The water in faucet model P299196LF comes in contact with both metallic, low lead brass and stainless steel, and non metallic parts braided vinyl tubing. Low lead law mandates that the weighted average lead content in pipes, fittings and fixtures used to convey drinking water cannot exceed 0.25% on wetted surfaces. This faucet is in compliance.
Thanks,
Dave
Date published: 2014-02-03
