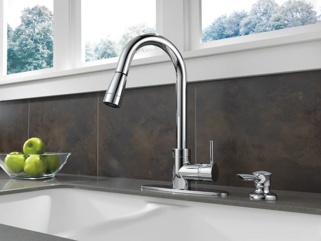

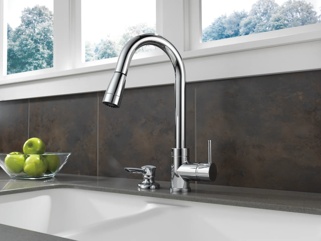

Integrated Pull-Down Kitchen Faucet with Soap Dispenser
P188104LF-SD is rated out of 5 by 29.
List Price*: $232.65
Product Features & Benefits
- Single lever control for ease of operation with one hand

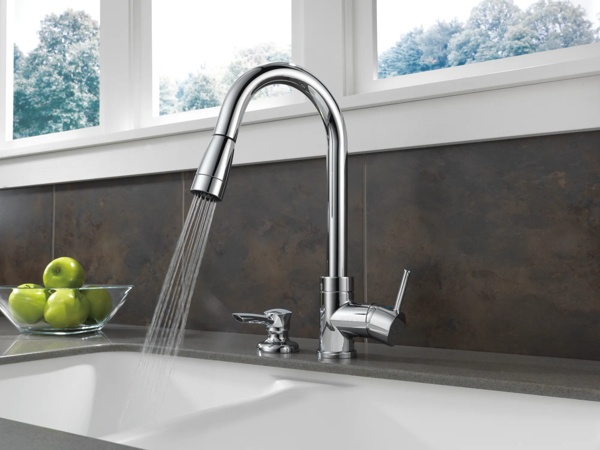

- Pull-down wand operates in an aerated or spray mode via swivel spray face.
- Matching soap dispenser for added convenience
- Escutcheon plate included for four hole mounting
- Soap Dispenser
- ADA Compliant
- Handle(s): Single Handle Lever
- With Soap/Lotion Dispenser: Yes
- Flow Rate: 1.5 gpm @ 60 psi, 5.7 L/min @ 414 kPa
- Pull-out/Pull-down: Yes
- Valve Type: Ceramic valve
- Installation: 1 2 3 or 4-hole 8" installation
- Spout Length: 8
- Spout Total Height: 15-1/2
- Spout Height Deck to Aerator: 8
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Parts & Accessories Diagram
Holes for Installation
1 2 3 or 4-hole 8" installation
Rated 3 out of 5 by Janet Menier from Peerless P188104LF-SD Not sure if this is the model but identical up to the sprayer. Definite Peerless. Bought in 2008 when my cottage did major reno. The faucet had twist sprayer and now broken. Having trouble buying a replacement sprayer to fit the unit which still works. Here is a photo of the sprayer 2 piece that broke.Needs a collar & Notch to hold in the faucet properly. Can anyone help?
Date published: 2019-06-01
Rated 4 out of 5 by Benjamin from 4 years old and still works great. Need to get a Looks great after 4 years. Sprayer stopped switching between sprays.
Date published: 2019-05-01
Rated 2 out of 5 by Jessica from Broke! We purchased this in 2013, and though we like the high arc and other features, the twisting from stream to spray had become increasingly difficult until it recently broke the head of the faucet totally, spraying water everywhere! I now get why most faucets use a button. Good product for awhile, just wish it was designed better!
Date published: 2019-03-06
Rated 4 out of 5 by Donk from wand not switching from stream, to spray. We have had the faucet model P188104LF-SSSD for several years, It has been a good faucet for us. I never liked the way you have to switch from spray, to stream, but learned to live with it. (you had to stop it in a certain spot to get stream) NOW the wand will not fully switch to stream. The wand needs replaced. I think if this wand was a button type switch, instead of twist you wouldn't be having these problems.
Date published: 2019-03-03
Rated 2 out of 5 by Chas73 from Update:Great faucet until cheap sprayer head broke Update: Peerless graciously came through and sent me a new sprayer head so kudos on their customer service, as befits, and one would expect from, a brand like Peerless. Unfortunately, the sprayer looks just like the original and has the same part number so I expect that this one will break in a few years, too, so I still cannot recommend this particular faucet, although I would look at other Peerless faucets in the future. Every company sometimes releases a clunker product; it's how a company stands behind that product to make it right that defines a good company. Peerless is trying to do the right thing with this product.
Date published: 2019-02-27
Rated 2 out of 5 by Chas72 from Great faucet until cheap sprayer head broke Like most of the other reviewers, perfect faucet until the sprayer first lost the indents for switching from stream to spray, then the whole bottom part of the sprayer fell out. Considering the number of reviews with the same problem, it's obviously a design flaw - definitely not the quality that I attach to the Peerless name. Is Peerless replacing these defective sprayers, hopefully with a new design?
Date published: 2019-02-18
Rated 2 out of 5 by Rental Guy from Broken Plastic Spray Wand----SAME PROBLEM I would normally buy one of the more economical faucets sold by Home Depot for a rental property I own, knowing renters can be rough on fixtures and resigning myself to having to just toss the unit out after a couple of years. This time my wife suggested we go to a top of the line unit since we had a great renter and the MOEN unit in place was acting up on her. We narrowed it down to a Kohler unit and the Peerless unit, which I ended up buying against my wifes suggestion...which I have been reminded about since learning from the renter that the spray wand head broke off in her hand. She felt terrible thinking it was her fault until I emailed he a link to your comments page and the same exact problem was documented over and over. Sad to see your name doesnt live up to the product...In fact the low cost MOEN outlasted the Peerless unit by a wide margin. Having said that, the design and operation of the water temp valve was good...and Credit is due that you posted up real comments highlighting the issue.
Date published: 2019-01-14
Rated 2 out of 5 by JonathanS from Worked Great, then the wand broke right off We've been using this faucet for 4 years and it has been great. Then one day the spray wand just broke right off where it twists to switch between spray and stream. Now the water sprays out of control. Cheap plastic parts inside.
Date published: 2018-12-05
Is there an adapter available to accommodate a Portable Dishwasher?
I have a portable dishwasher that hooks up to my old Moen faucet. I would like to buy the above faucet for my new counter and sink. By removing the spray head it could accommodate my dishwasher if I had a part that would fit in it's place or an adapter for the part I currently use. From what I saw in the store, it would need pipe threads to fit the new faucet and machine threads to attach to the old fitting.
Having done so myself, I can say that there are not backpressure issues as suggested by the manufacturer. It is a 1/2" pipe thread. To convert that to a facet thread, you will have to go from the 1/2" to 3/4"GHT (Garden Hose). From there (1/2" Male to 3/4" GHT Female) I was able to go 3/4" GHT Male to 55/64" Female Inside 15/16" Male Outside, then using a 55/64" Male-Male Coupler to my 55/64" Female Inside 15/16" Male Outside Quick Attach Snap On Aerator that attaches to my portable dishwasher. You will want to screw it all together using wrenches and pliers to avoid drips. I have found that the Quick Attach adapter for my portable can come off the end and be put back on by hand easily so I can swap in my water filter whenever I want and that finger tight is enough to not get drips between that and the coupler.
Date published: 2017-10-28
can i turn it around so the handle is on the left?
Hi JK, Thank you for your question. The spout on the model P188104LF-SD rotates a full 360 degrees. The faucet can be installed with the handle on the left. Thanks, Dave
Date published: 2016-02-04
Is it possible to change the stream/spray option so the default is spray?
Loving my new Peerless faucet so far, particularly the ability to switch - with the press of a button - the faucet head to a shower-type spray rather than the default single stream. Thing is, the spray is more convenient for almost all uses. Is it possible to change the default to spray?
Hi Gary, Thank you for your question. The wand on the model P188104LF-SD does not have a default stream/spray setting. The faucet will remain in whatever spray setting is chosen when the faucet is turned off and back on again.If you leave the wand in the spray setting it will remain there until changed. Thanks, Dave
Date published: 2015-09-21
How do you tighten the swivel neck?
The neck that the pull down head seats in rocks back and forth in the base. Is there any way to tighten it.
Hi Pitties4, Thank you for your question. There is no adjustment to make the spout tighter but we recommend that you verify that the spout bonnet is tightened down completely. Thanks, Dave
Date published: 2015-05-11
Can I get another matching soap dispenser with this faucet? Can I buy it separately?
Hi Susan, Thank you for your question. The soap dispenser to the model P188104LF-SSSD is available to order separately as RP49302SS. This item can be ordered online or from your local retailer or wholesaler that sells Peerless/Delta products. http://www.deltafaucet.com/repairparts/details/rp49302ss.html?showPhotoGallery=false Thanks, Dave
Date published: 2015-04-13
Does this faucet have flexible supply lines or copper lines?
Hi Deppzone, Thank you for your question. The model P188104LF-SSSD has copper supply lines that end with a 1/2" male pipe fitting. Thanks, Dave
Date published: 2015-02-20
I need to get a replacement part, the black threaded nylon nozzle in the head
Have looked threw this site trying to find the part described above , and just keep getting directed to the same unhelpful areas , this site is labeled parts and repair but thats not here , I need to get this part that broke, going to help or redirect me again to something that does not apply, the threaded black nylon nozzle assy it broke in two pieces
Hi Cabbage, Thank you for your question. The wand assembly for the model P188104LF-SSSD does not break down into smaller components that are available as separate items. If the black threaded portion of the wand is damaged the entire RP71265SS will need to be replaced. If you are the original purchaser of the faucet and need warranty parts assistance please call our toll free Helpline at 1-800-643-8667. Thanks, Dave
Date published: 2018-01-05
Is there any plastic in the faucet assy, other than the flexible connections? Is there plastic in the soap pumper?
Hi Sopovada, Thank you for your question. The wand assembly and the soap dispenser are the non-metallic components on the model P188104LF-SSSD faucet. Thanks, Dave
Date published: 2014-05-09
