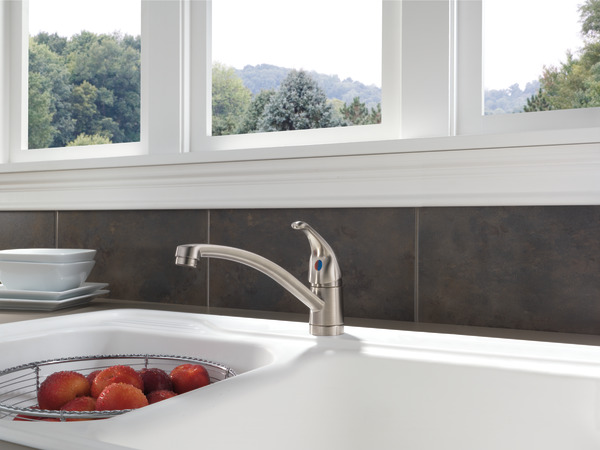

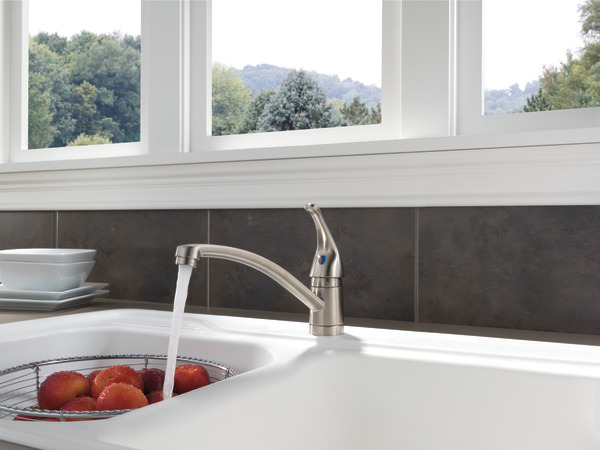

TUNBRIDGE™
Single Handle Kitchen Faucet
Model:P188201LF-SS
Product Features & Benefits
- Transitional style complements the home
- Single lever control for ease of operation with one hand

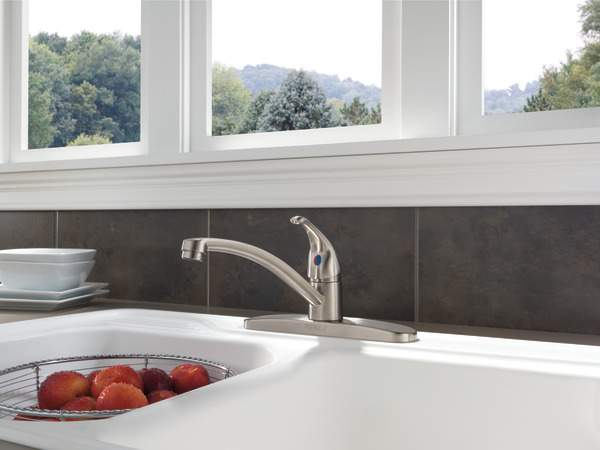

- 1 or 3-hole sink applications using optional escutcheon
- Water Efficient Product meeting CALGreen standards
- Low Lead Certified
- Brilliance Finish
- ADA Compliant
Product Details
- Handle(s): Single Handle Lever
- Flow Rate: 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
- Valve Type: Washerless ball valve
- Installation: 1 or 3-hole 8″ installation
- Spout Total Height: 7
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram
Holes for Installation
1 or 3-hole 8″ installation
What is the thread size of the aerator? Are the threads that the aerator goes into (the female faucet threads) brass?
Thank you for your question, Schnogg! The spout is brass and has 15/16"-27 aerator threads.
Best regards, Jon
Date published: 2018-12-04
I have a countertop dishwater can this be screwed into Fawcett?
Hello Vinny S,
Thank you for your question. Connecting portable dishwashers to kitchen faucets must be done with care. It is critically important to use the proper adapter size and gaskets. Not doing so could damage the spout permanently and cause leaks under the deck. We would advise checking with local plumbers or stores for adapters, as we do not make any.
Best regards,
Tanya
Date published: 2018-06-04
What is the overall height of this faucet
Hello Beckid,
Thank you for your question. The total height of the Peerless Kitchen P188201LF faucet is 7 1/2"
(190 mm), with the handle open position.
https://media.peerlessfaucet.com/SpecSheet/PSP-K-P188501LF%20Rev%20B.pdf
Best regards,
Tanya
Date published: 2018-04-17
How do I replace the spout..I have a new one but cannot seem to get the old one off..
What size of allen wrench does the set screw take or do I need a special wrench?
Date published: 2017-01-14
should the cold water connection swivel?
The hot water side does not move but cold water does.
Hi Pam, The supply lines on the model P188201LF can potentially swivel. The connection is sealed with an o-ring that can allow the lines to move.
Thanks,
Dave
Date published: 2015-05-18
Have a drip from the faucet. How and what do I have to replace?
My faucet is an older model than the one In the photo but it is the same style.
Hi Frank, Thank you for your question. Replacing the seats and springs should stop the leak in your dripping faucet. Here is a link to our Replacing seats and springs in your faucet how to video.
http://www.deltafaucet.com/tools-resources/research/video-gallery/video.html?v=O-pCJdvD4oc&cat=
Thanks,
Dave
Date published: 2017-06-03
Can this faucet be installed without the base plate? My sink is too narrow for the plate to fit.
Hi Tadraw, Thank you for your question. The model P88201LF-SS can be installed as either a 1 or 3 hole installation. You do not have to use the long escutcheon/base plate.
Thanks,
Dave
Date published: 2014-10-15
