TUNBRIDGE™

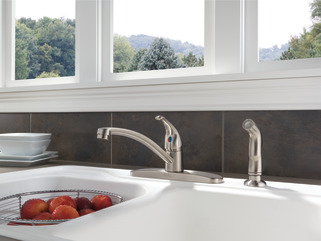

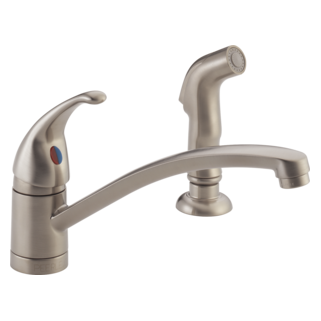

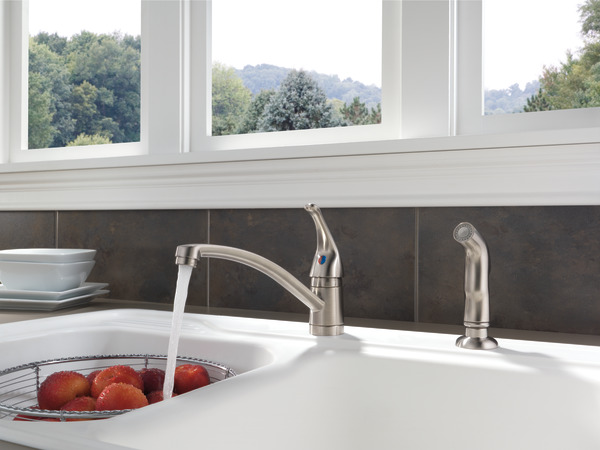

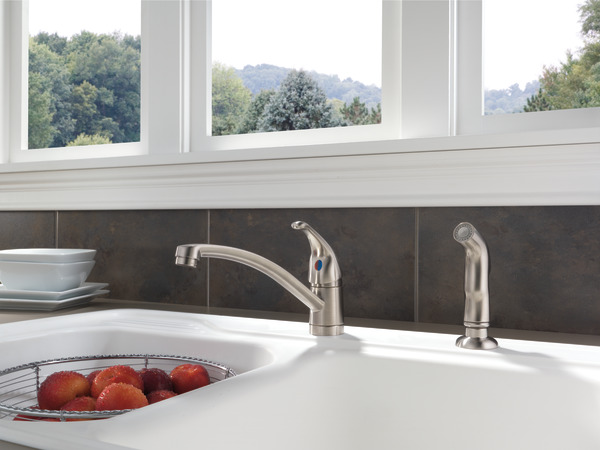

Single Handle Kitchen Faucet with Matching Side Spray
Model:P188501LF-SS
Product Features & Benefits
- Transitional style complements the home
- Single lever control for ease of operation with one hand
- Matching Side Spray for easy pot filling and cleaning
- 2 or 4-hole sink applications using optional escutcheon
- Water Efficient Product meeting CALGreen standards
- Low Lead Certified
- Brilliance Finish
- With Side Sprayer
- ADA Compliant
Product Details
- Handle(s): Single Handle Lever
- With Side Sprayer: Yes
- Flow Rate: 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
- Valve Type: Washerless ball valve
- Installation: 2 or 4-hole 8" installation
- Spout Total Height: 10
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram
Holes for Installation
2 or 4-hole 8" installation
I need to remove the quick clip sprayer from the faucet.
captcrf,
Thank you for your question. To remove the quick connect clip, squeeze the textured portion of the tabs on 2 sides of the white block connector. Once you have applied pressure, push up and then pull the hose down off the fitting.
Best regards,
Jon
Date published: 2018-01-17
Cap for sprayer water supply (under sink)
My customer bought a faucet and installed it and doesn't want the sprayer. Do you have a quick connect to cap off the water supply instead of quick connecting the sprayer?
Hi Lori,
Thank you for your question! This model has two versions. If the hose has is a quick-connect clip you can cap it off with the RP60295 Quick Plug.
http://www.peerlessfaucet.com/bath/product/RP60295
If it has a threaded connection, a compatible threaded cap can be purchased from a plumbing supply or hardware store.
Best regards,
Jon
Date published: 2017-01-12
Handle points right to get hot, but hot is on the left. Is it installed wrong??
Hi Petwed, Thank you for your question. Based on the symptoms that you describe it sounds like the hot and cold water inlet lines to the faucet are reversed. Shut off your water supply stops under the sink, unscrew the supply lines from the faucet, switch the supply lines and reinstall. This should get the faucet to operate properly with cold to the right and hot to the left.
Thanks,
Dave
Date published: 2016-01-22
What color
Does this come in almond color?
Hi bb, Thank you for your question. The model P188501LF is available in chrome and stainless steel finishes. We no longer offer an almond finish.
Thanks,
Dave
Date published: 2015-03-02
