CLAYMORE™

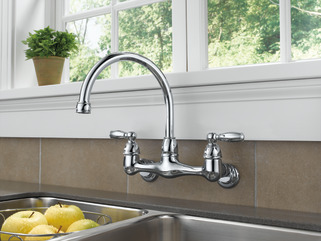

Two Handle Wall Mounted Kitchen Faucet
Model:P299305LF
Product Features & Benefits
- High arc, rotating spout for superior accessibility
- Ergonomic blade handles offer easy control
- Wall mount installation
- ADA Compliant
Product Details
- Handle(s): Two Handle Lever
- Flow Rate: 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
- Tall/High-Arc: Yes
- Valve Type: Washerless stem cartridge
- Installation: 2-hole wall mount installation
- Spout Length: 8
- Spout Total Height: 10-3/16
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram
Holes for Installation
2-hole wall mount installation
Rated 1 out of
5
by
Jen from
Faucet issue~ spout
I am also experiencing trouble with to spout. We have had leaking at the base of the faucet where the "bonnet" is located. I have added more thread tape, tightened it, and have replaced the o-ring that I found was broken when I finally took it off. Now the entire spout flies off the base of the faucet when the water pressure becomes too much. This sink/faucet is used everyday. I purchased this about 6 months ago because it was an affordable wall-mounted faucet, but it has not been worth the trouble & time it has cost me.
Date published: 2017-10-30
Rated 3 out of
5
by
Anne from
great faucet but flimsy spout/threads
We love this faucet, but will have to replace it unless we can get just a replacement spout - we use a portable dishwasher & so have a custom aerator on the faucet, and it will no longer seal to the aerator. Just spent $40 for an OEM new aerator, because we assumed that was where the problem was, but it turns out it's the faucet spout threads. Wish we could purchase just the replacement gooseneck spout to avoid having to do a whole new installation!
Date published: 2017-04-16
Rated 4 out of
5
by
Paul341SV from
need replacent gooseneck spout p299305lf wall mount
Spout has pinhole leaks / hairline cracks from use. We install adjustable direction head to direct water spray so spout head is used continuously. The spout wall thickness needs to be one gauge thicker.
This is my 2nd failed unit in less than ten years but it gets used every day. Good product, just need better tubing. (the mfg bend introduces stress cracks) and make available as a replacement part.
Thanks, Paul in Santa Cruz CA
Date published: 2015-11-10
Rated 5 out of
5
by
kenshar52 from
this works well and easy
the faucet is an easy install works well and easy operation definately a good deal
Date published: 2012-11-22
does this faucet also come in deck mount with a spray?
Thank you for your question, Kathy! The model P299575LF is a deck mounted faucet with side sprayer in the same style.
http://www.peerlessfaucet.com/kitchen/product/P299575LF
Best regards,
Jon
Date published: 2018-02-01
Can I add sprayer
Looking to add short hose sprayer to this
Thank you for your question Lostriver!
Unfortunately, a sprayer cannot be added to this model.
Best regards,
Edward
Date published: 2017-10-16
Where to install separate shut off valves?
What are your suggestions concerning the addition of separate shut off valves for the cold and hot supply lines? I'm considering to use this faucet for a free standing wall mount laundry tub in new construction. The water lines are coming from a crawl space.
Thank you.
Les Kish
Hi Les,
Thank you for your question. Unfortunately, we are only able to help with product related questions. For plumbing questions, we would recommend to contact a qualified plumber.
Best regards,
Jon
Date published: 2017-07-12
What is the thread on the Aerator, I want to get a garden hose adapter.
Hi Keith,
Thank you for your question. The aerator has 55/64"-27 threads. Unfortunately, we do not make an adapter for this faucet, but you may be able to find one locally or online.
Best regards,
Jon
Date published: 2017-06-28
are wall extensions available so the faucet is a couple inches farther from the wall?
I have a window over my sink with a ledge that sticks out. The curved faucet spout starts under the ledge so can't mount it.
Hi Alice,
Thank you for your question. Unfortunately we do not offer a wall extension for the model P299305LF.
Thanks,
Dave
Date published: 2015-12-01
Is there a shorter spout available for this model?
Hi Deano, Thank you for your question. Unfortunately we do not offer any shorter or longer spout sizes for the model P299305LF.
Thanks,
Dave
Date published: 2015-10-16
Does the spout swivel to accommodate a double sink?
Hi Bee, Thank you for your question. The spout on the model P299305LF is 8" long and will accomodate a double sink the same way a deck mounted faucet would.
Thanks,
Dave
Date published: 2015-10-02
I have purchased & installed P299305LF
I would like to know if there are porcelain knobs available for purchase. There are stainless steel knobs on the faucet now. If so can you tell me where I can purchase them.
Thanks, Chris
Hi Chris, Thank you for your question. The Delta H27 porcelain handles will work with your model P299305LF faucet. These handles can be ordered online or at your local retailer or wholesaler that sells Delta/Peerless products.
Thanks,
Dave
http://www.deltafaucet.com/repairparts/details/h27.html
Date published: 2014-06-16
