Tunbridge™

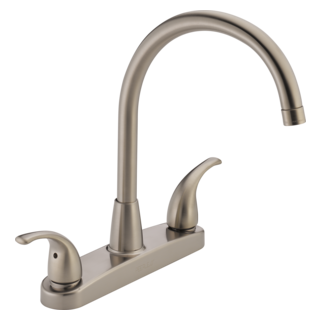

Two Handle Kitchen Faucet
Model:P299568LF-SS
Product Features & Benefits
- Ergonomic blade handles offer easy control
- High arc, rotating spout for superior accessibility
- 3-hole sink application
- Water Efficient Product meeting CALGreen standards
- Low Lead Certified
- Brilliance Finish
- ADA Compliant
Product Details
- Handle(s): Two Handle Lever
- Flow Rate: 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
- Tall/High-Arc: Yes
- Valve Type: Washerless stem cartridge
- Installation: 3-hole 8" installation
- Spout Length: 9
- Spout Total Height: 12-1/2
- Spout Height Deck to Aerator: 8-5/8
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram

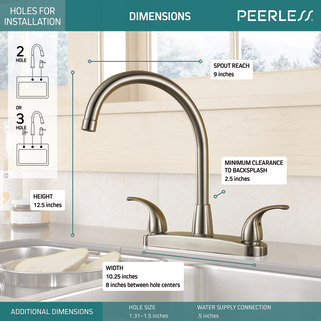

Holes for Installation
3-hole 8" installation
Rated 5 out of
5
by
Ace from
This product fulfills my need
I bought this Peerless 2 Handle Faucet for my Kitchen RV. It fits perfect in my RV and I can even wash my hair now!
Date published: 2015-06-09
Is this model made for double sink? If so what is the best model for a single sink?
Hello Barb,
Thank you for your question. The Peerless Tunbridge Kitchen P299568LF faucet can be installed on either a single or double bowl sink. The 12 1/2" (318 mm) high, 9" (229 mm) long spout,
swings 360° to accommodate both sink types.
Best regards,
Tanya
Date published: 2018-09-25
How is the unused hole for a sprayer attachment plugged so it won't leak?
Or does the non=sprayer version not have a hole for sprayer attachment? I have had problems with sprayer attachment leaks before and I would like to avoid the problem. I don't want a sprayer or a leaking attachment point.
Hi justme, Thank you for your question. The model P299568LF faucet does not have the spray port at all. There is no additional plug/cap needed or installed that may be a leak point.
Thanks,
Dave
Date published: 2015-09-29
Attach a Hose?
I want to attach my garden hose to the faucet but cannot find the thread size listed anywhere in the specs. What is the thread size?
Hi brookgarden, Thank you for your question. The thread size for the aerator on the model P299568LF is 55/64-27.
Thanks,
Dave
Date published: 2014-10-10
what size supply line goes with p229568lf-female size
Hi J, Thank you for your question. The supply line connection to the model 299568LF faucet is 1/2" pipe thread.
Thanks,
Dave
Date published: 2017-06-23
What's not plastic?
Hi, I know that there is some plastic used on this model. Can you tell me which parts are metallic and what type of metal is used for this faucet? Thank you.
Hi Lex, Thank you for your question. The handles, spout, and escutcheon are metal. Zinc and brass are the metals used.
Thanks,
Dave
Date published: 2014-07-22
Flow regulator...
Is there a water flow regulator on this model? If so, can it be removed?
Hi Lex, Thank you for your question. The model P299568LF does not have a flow regulator. The aerator rated at 1.8 gallons per minute controls the flow rate.
Thanks,
Dave
Date published: 2014-07-22
Repair
How do you take off the hot and cold handles to replace the cartridges...
Hi Kevin, Thank you for your question. To remove the handles on the model P299568LF faucet you need to unscrew the set screws that are found on the side of the handle underneath the lever portion of the handle. Once the set screws are removed the faucet handles should lift off the stem assembly. I have attached a link to the owners manual for your faucet model below. This includes a parts breakdown of the faucet which should help with your repair.
Thanks,
Dave
http://www.peerlessfaucet.com/customer-support/find-repair-parts/documentation/p299568lf.html?document=mi&documentIndex=0
Date published: 2014-03-18
can i buy just the faucet?
i need only a faucet that has a removable end so i can screw on an appliance to it. i don't need the handles or the base. the one i have now does not have a removable end and i can't get the screen out.
Thank you for your question. Peerless Faucet model # P299568LF has to be purchased as a complete set. The spout cannot be purchased by itself.
Date published: 2013-10-22
