TUNBRIDGE™
Two Handle Kitchen Faucet
Model:P299578LF-SS
Product Features & Benefits
- High arc, rotating spout for superior accessibility
- Ergonomic blade handles offer easy control
- Matching side sprayer for easy pot filling and clean-up around the sink
- 4-hole sink application
- Water Efficient Product meeting CALGreen standards
- Low Lead Certified
- Brilliance Finish
- With Side Sprayer
- ADA Compliant
Product Details
- Handle(s): Two Handle Lever
- With Side Sprayer: Yes
- Flow Rate: 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
- Tall/High-Arc: Yes
- Valve Type: Washerless stem cartridge

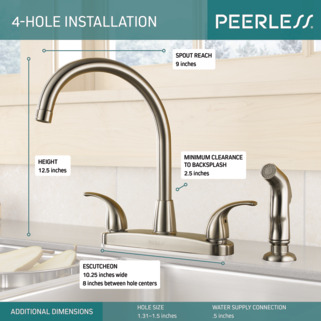

- Installation: 4-hole 8" installation
- Spout Length: 9
- Spout Total Height: 12-1/2
- Spout Height Deck to Aerator: 8-5/8
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram
Holes for Installation
4-hole 8" installation
Rated 2 out of
5
by
Maggue from
Great Look but could be better.
I love the look of the facet but there are two major laws; 1) when you turn it off the water comes out of the arch. This results in the arch being re-filled or burping every time it turns on. 2) The hand facet leaks ever so slightly that after it has sat for a little while and you turn it on, it thumps as it re-pressurizes the line to the hand facet. Overall, all just annoying and causes irritation. I would have returned it if it was not so frustrating to install (more my lack of plumbing skills vs and issues with the facet.)
Date published: 2018-09-03
Rated 5 out of
5
by
4est from
Great Product So Far
Wife loves it. Easy to install. One Thing to do. Replace your shut off valves under the sink, if they are over 10 years old. When i shut my valves off, the rubber gasket broke into small pieces. When i turned it back on, a piece of the rubber got lodged in the hot water valve and i had to take it apart to remove the rubber. It works Great now. Also love the new style of valve that is built into the faucet. I will buy from peerless again.
Date published: 2018-03-08
Rated 3 out of
5
by
Chris from
Difficult to repair/maintain
I've had this unit for a few years now. The first thing to go was the sprayer base. This can be resolved of a washer/shim were added to this kit. Seen lesser expensive ones with this. Just today, the sprayer hose begin to leak. Unfortunately, there is no easy fix for this. Perhaps, if the quick connect had a feature to shut off usage until repaired, will be great. Cant repair with off-the shelf parts due to availability. So, had to replace whole unit due to not being able to find a viable replacement hose and sprayer. Too bad, because the actual faucet is in great condition...
Date published: 2017-12-11
Rated 5 out of
5
by
Randyplumber from
This is an excellent pice in quality and design. Price too. Kindof amazing.
Smooth operation, no squeaks like cheap units. Solid metal. "Feels good." The only improvement might be on installation: That could be improved by including shims, perhaps 1/8" thick, to place between tightener twist knobs and the underside of sink top, needed to firm up the mounting. I had to make my own to stop the wiggle. Add a thin one for the main spigot/handles body as well, but very thin, perhaps 1/16".
Date published: 2017-09-21
Rated 3 out of
5
by
Bob42 from
This product has less than great features.
This products hot and cold valves require turning them greater than 50% before water flows and takes noticeably longer time to fill a vessel than previous similar kitchen faucet.
Date published: 2017-08-23
Rated 5 out of
5
by
Jh1 from
Love this product!
Love the way it was so easy to connect, love the color and finish. It is exactly what we needed and hope it last longer than what we had purchased before.
Date published: 2017-08-22
Rated 5 out of
5
by
VicM from
Love the faucet/customer service
Love the high profile of this product. After 10 yrs. we had a small leak around the center fixture. Called for help from customer service, and received trouble free help and parts ordered and shipped. Thank you so much!!!
Rare this day and age to have courteous and professional help the first call!
Date published: 2017-06-20
Rated 5 out of
5
by
Sanur from
Excelllent quality product. Fully satisfied.
Excellent quality. Very elegant looks. High arch Met my requirements. Matches my kitchen decor. Fully satisfied.
Date published: 2017-06-18
Are the valve stems ceramic disc, or are they ball; or, cartridge? I just don't want rubber compression valves.
Coso,
Thank you for your question! The valves have stem units with a stainless steel plate and rubber seats and springs.
Best regards,
Jon
Date published: 2018-01-05
Faucet handle on P299578 LF what screw driver do I need
Hello there Millie,
Thank you for your inquiry! To remove the set screw from the side/base of the handle on the Peerless Kitchen P299578LF faucet model, you will need either 1/8" or a 3/32" Allen wrench.
Best regards,
Tanya
Date published: 2017-11-25
what is the female thread size for the aerator?
muggsy,
Thank you for your question! The aerator has a thread size of 55/64"-27.
Best regards,
Jon
Date published: 2017-10-02
IS this faucet NSF 61-9 certified for lead?
Hi boz,
Thank you for your question. This product is certified lead-free and complies with NSF 61.
Best regards,
Jon
Date published: 2017-05-23
what size allen wrench is required to tighten RP70198 handles
Hi Jimbo1,
Thank you for your question! The set screws will take a 3/32" Allen wrench.
Best regards,
Jon
Date published: 2017-03-31
I need a gasket
I need a gasket for between my faucet and sink, I mistakenly threw mine out
Hi ange,
Thank you for your question. Unfortunately, the base gasket is not available separately for this item. However, you can use a thin bead of silicone in place of the gasket. This will help prevent water from getting under the base.
Best regards,
Jon
Date published: 2017-01-26
Do they make a longer spray hose for this?
My new offset sink makes the standard spray hose too short.
Hi BillnTX,
Thank you for your question. Unfortunately, we do not make a longer hose assembly for this faucet.
Best regards,
Jon
Date published: 2017-01-04
pulsating
when I turn water on it pops 2 or 3 times and it shakes the lines what is doing this?
You need a new diverter. It's very easy to install, once you've watched a you-tube video on it.
Date published: 2017-01-14
