PEERLESS

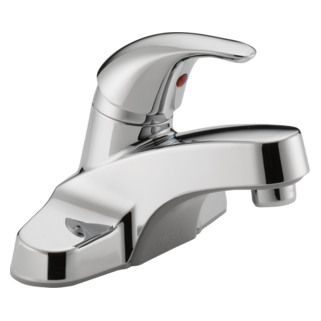

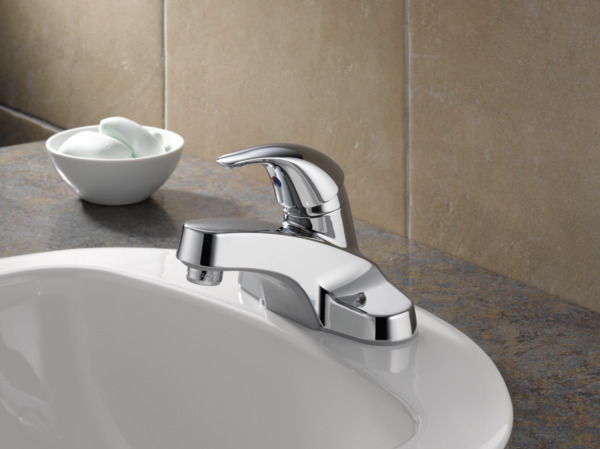

Single Handle Bathroom Faucet
Model:P136LF-M
Product Features & Benefits
- WaterSense certification promotes water conservation
- Includes matching finish drain assembly
- Meets standards set by Americans with Disabilities Act (ADA)
- 3-hole 4 in. installation
- Water Efficient Product meeting CALGreen standards
- Low Lead Certified
- WaterSense Labeled
- ADA Compliant
Product Details
- Handle(s): Single Handle Lever
- Flow Rate: 1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
- Valve Type: Washerless ball valve
- Installation: 3-hole 4" installation
- Spout Length: 3-29/32
- Spout Total Height: 6-3/32
- Spout Height Deck to Aerator: 1-23/32
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram
Holes for Installation
3-hole 4" installation
how can you tighten the handle on this faucet?
Thank you for your question, Lorrie! The handle can be tightened by removing the red/blue button and tightening the set screw using a 1/8" Allen wrench.
Best regards, Jon
Date published: 2018-07-20
Where do i find the o-ring for ball slot pin on model P136LF-M ??
Hi Dave,
Thank you for your question. The RP77763 Repair Kit will include all of the replacement parts for the valve. This can be purchased locally, online, or over the phone at 1-800-438-6673.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP77763
You can use our Where To Buy page to find dealers in your area:
http://www.peerlessfaucet.com/where-to-buy
Best regards, Jon
Date published: 2018-06-17
Why is the Single handle so very hard to move around?
Very stiff/tight. Very difficult to adjust water temperature.
Is there an adjustment I can make to resolve this issue?
Hi Ladyplumber, Thank you for your question. There is an adjusting ring that is part of the cap underneath the handle that puts tension on the ball assembly. Loosening the adjusting ring should make it easier to move the handle.
Here is a link to the parts diagram for the model P136LF-M to help with your repair.
http://www.peerlessfaucet.com/customer-support/find-repair-parts/documentation/p136lf-m.html?document=pd&documentIndex=0
Thanks,
Dave
Date published: 2018-06-17
