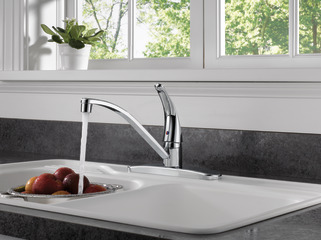

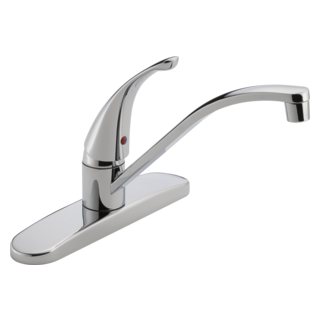

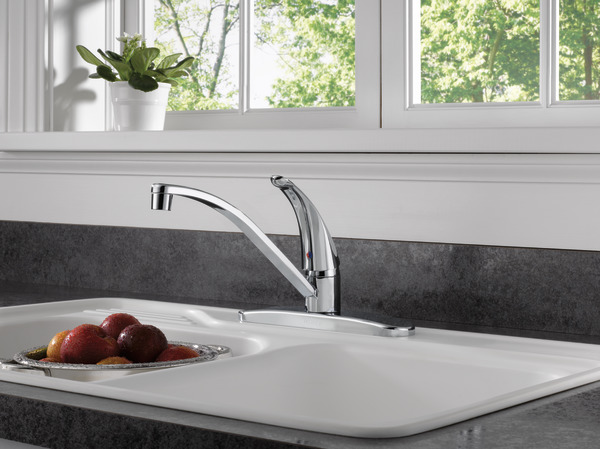

TUNBRIDGE™
Single Handle Kitchen Faucet
Model:P188200LF
Product Features & Benefits
- Single lever control for ease of operation with one hand
- Spout swivels 360 degrees for added convenience
- 3-hole sink application
- Water Efficient Product meeting CALGreen standards
- Low Lead Certified
- ADA Compliant
Product Details
- Handle(s): Single Handle Lever
- Flow Rate: 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
- Valve Type: Washerless ball valve
- Installation: 3-hole 8" installation
- Spout Length: 9
- Spout Total Height: 7-5/16
- Spout Height Deck to Aerator: 6-1/4
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram
Holes for Installation
3-hole 8" installation
Rated 5 out of
5
by
PRJ 88 from
RE: ALLEN SCREW ON 2017 STEM HANDLE IS 1/8"
BE ADVISED in the Q&A its stated the allen (hex) locking screw on stem handle is 3/32". The faucet handle on my unit purchased in 2017 is actually 1/8".
Date published: 2018-02-01
Can you add a side sprayer?
Thank you for your inquiry, Steve24! The Peerless Kitchen P188200LF faucet is not designed with a place to connect a side sprayer assembly, below the faucet. You would need the P188400LF or P188500LF models, that come with vegetable sprayer assemblies.
https://media.peerlessfaucet.com/SpecSheet/PSP-K-P188200LF%20Rev%20B.pdf
Best regards,
Tanya
Date published: 2018-04-17
Why is there a warning on using this faucet with a portable dishwasher?
Thank you for your question, Paul. This faucet may be used with a portable dishwasher. We do not recommend to use a portable dishwasher with other models in the same series that have a side sprayer.
Best regards,
Jon
Date published: 2017-12-26
Base Plate Dimensions
Your material doesn't give the dimensions of the escutcheon, other than it is 10 " in length. I'm working in very limited space and need to know the width or depth of the base as well. Could someone provide exact dimensions?
Hi ElleJ, Thank you for your question. The base plate/escutcheon on the model P188200LF is 2.13" in depth.
Thanks,
Dave
Date published: 2015-01-15
Gasket or cylinder?
I'm wondering what is used with Peerless faucets as compared to Moen which we now have? I feel the Moen is fine at first but then gradually gets stiff and hard to move the neck and handle. I would like to return to the gasket type.
Hi Robert, Thank you for your question. The model 188200LF uses the ball assembly with seats and springs. The handle should not stiffen over time.
Thanks,
Dave
Date published: 2013-12-06
What Kind of Screwdriver bit can I use for the handle?
The handle were I turn the water on is a little lose and wanted to know what kind of screwdriver size to use to tighten.
Thank you for your question. Peerless Faucet model # P188200LF uses a 3/32 allen wrench to tighten the set screw.
Date published: 2013-10-22
