PRECEPT™
Single Handle Centerset Bathroom Faucet
Model:P191102LF
Product Features & Benefits
- WaterSense certification promotes water conservation
- Fits 1 or 3-hole 4 in. installations

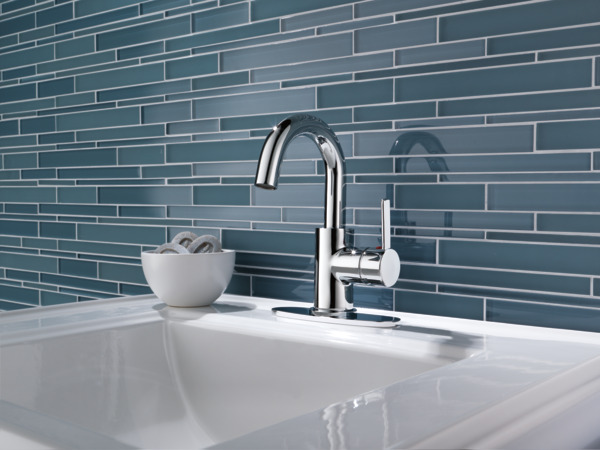

- Includes optional 6 in. escutcheon for 3-hole installations
- Meets standards set by Americans with Disabilities Act (ADA)
- Water Efficient Product meeting CALGreen standards
- WaterSense Labeled
- ADA Compliant
Product Details
- Handle(s): Single Handle Lever
- Flow Rate: 1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
- Valve Type: Ceramic valve
- Installation: 1-hole installation
- Spout Length: 3-15/16
- Spout Total Height: 7-15/16
- Spout Height Deck to Aerator: 5-3/16
Support, Repair Parts & Technical Specs
Maintenance & Installation Sheet
Technical Specifications
Parts & Accessories Diagram

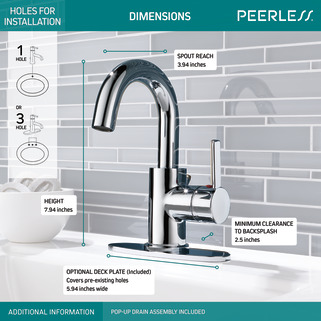

Holes for Installation
1-hole installation
Does the spout swivel on this faucet, if so how far?
WSCJ,
Thank you for your question. This faucet has a fixed spout. For more information, please refer to the Technical Specifications linked below.
https://media.peerlessfaucet.com/SpecSheet/PSP-L-P191102LF%20Rev%20C.pdf
Best regards, Jon
Date published: 2018-06-20
Hot/cold direction
It appears from the picture that pulling the lever towards you will get hot water and pushing it away from you will get cold?!? Is there a specific reason for that configuration? Can it be modified to be cold towards you and hot away? I just think my kids will pull it all the way towards themselves, but that will result in super hot or scalding water. I'd prefer right handed installation.
Hi Val,
Thank you for your question. Rotating the handle forward does provide hot water, and we do recommend to use the faucet as designed. However, the temperature can be reversed by swapping the supply line connections under the sink. Please be sure to switch the red/blue button around to indicate the correct temperature.
Best regards,
Jon
Date published: 2018-06-20
